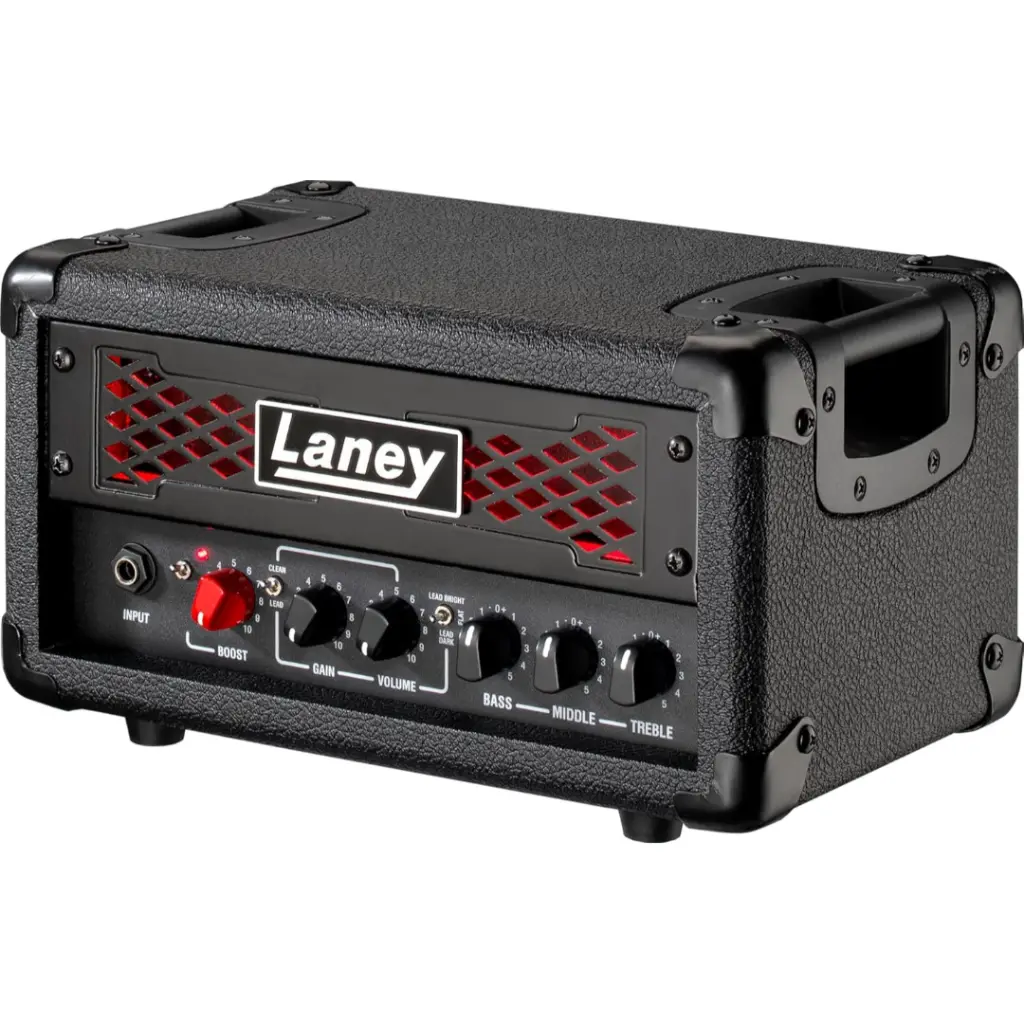

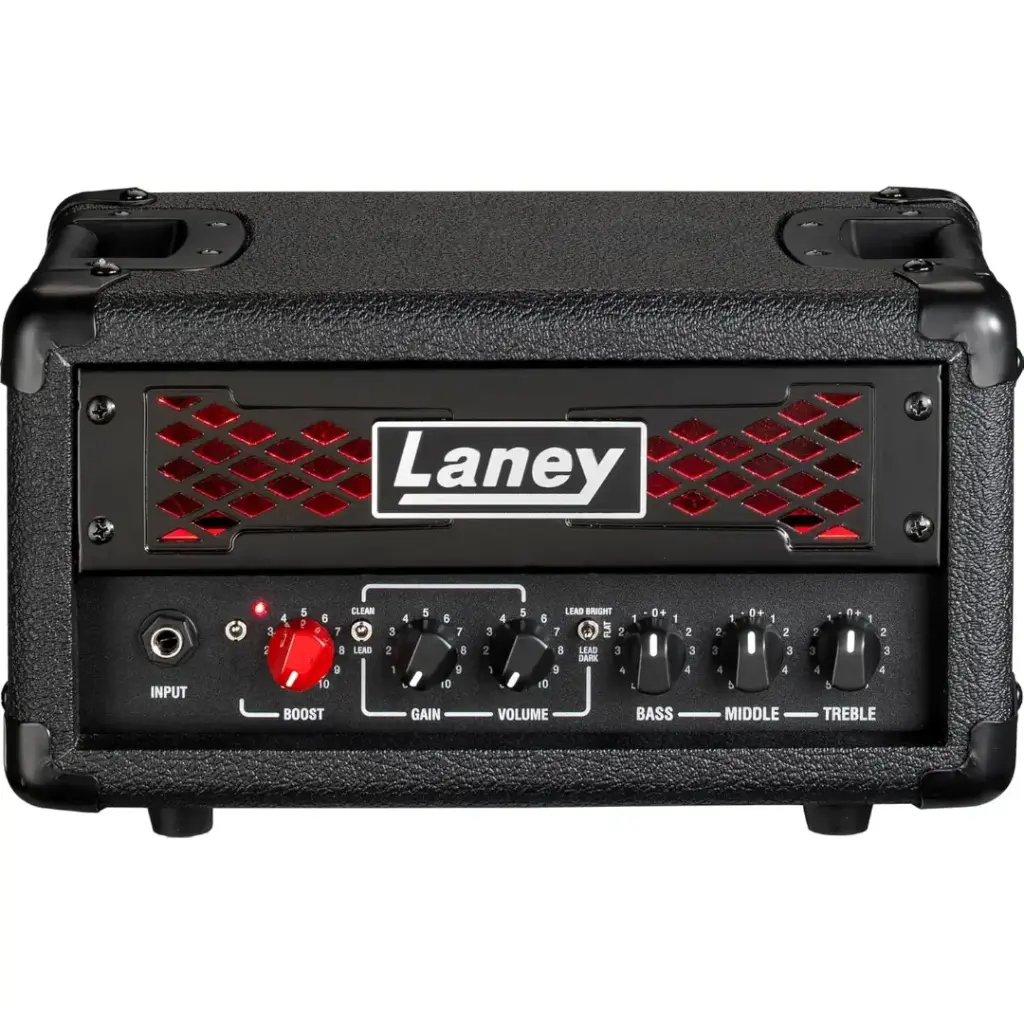

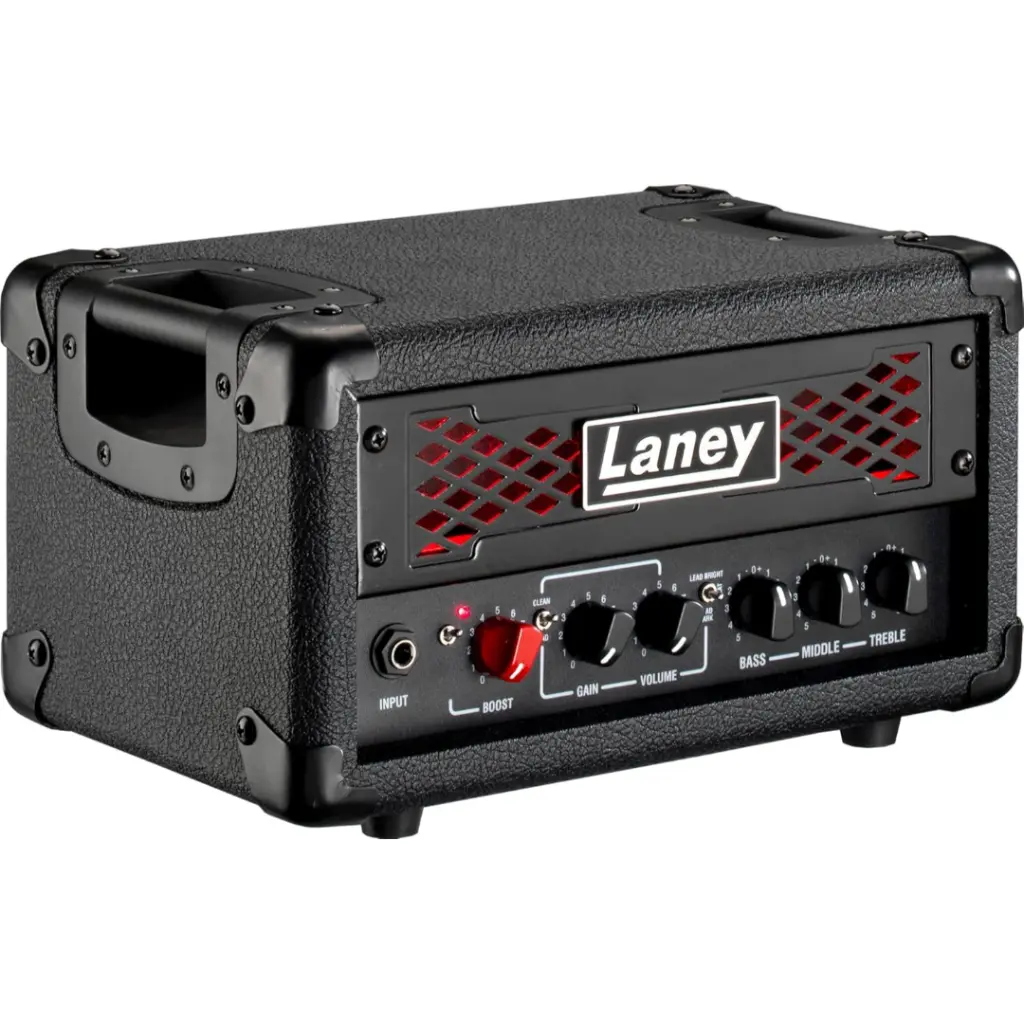

Laney IRF-LEADTOP PEDAL AMPLIFIER
In the 1700s the first Newcomen Steam Engines were designed and constructed right in the in the heart of England, in the midlands; a 100 years later the skies were black with smog from burning furnaces, fueling the legendary industrial revolution. This was the beginning of the Black Country. As the fire and brimstone that once scorched the sky began to fade, another type of metal was born: Heavy Metal; the beating twisted heart of the Black Country. The IRONHEART FOUNDRY series is forged from fire and iron right at the heart of the Black Country, the furnaces rekindled to create a beast. Laney, tone blacksmiths of the midlands, have created a tiny monster. We call it the IRF-LEADTOP, a 60-Watt single channel amplifier in a mini head format. It's soul, from the IRONHEART that resides in the home of industrial revolution, is designed in the UK by Laney's dedicated tone team. Set to CLEAN, you get crisp clear cleans with sparkle and warmth, while switching to LEAD is all about the gain. It can deliver gut punching tones at lower gains to full on roars when turned up. The Lead channel features lead bright, flat and lead dark options you can set to your choice. The 3 Band EQ section is the tonal offspring of the legendary IRONHEART valve heads, capturing all the nuances and flexibility. This traditional passive tone stack with complex interactivity never sounds bad. The IRF-LEADTOP features a fully transformer isolated FX loop for a pure, unadulterated clean signal between the IRF-LEADTOP and your favorite guitar pedals – allowing you noise free performance. An auxiliary input and headphone output makes the IRF-LEADTOP ideal for practicing at home or on the move. And then, if you dare, the last control. If you weren't already maddened by the insanity of the IRF-LEADTOP, the switchable BOOST is there to tip you over the limit. Push your drive tones further and feel the very soul of the IRONHEART pour out. And yes, it may be small but it's LOUD, you can choose just how loud this monster is by the switchable WATTS control!
| Model: HH-lY-IRF-LEADTOP |
| Color: Black |
| Type: Solid State Guitar Amplifier Head |
| Output Power: 60 Watts RMS, switchable to a low power mode of less than 1W |
| Channels: Single channel with switchable Clean and Lead modes |

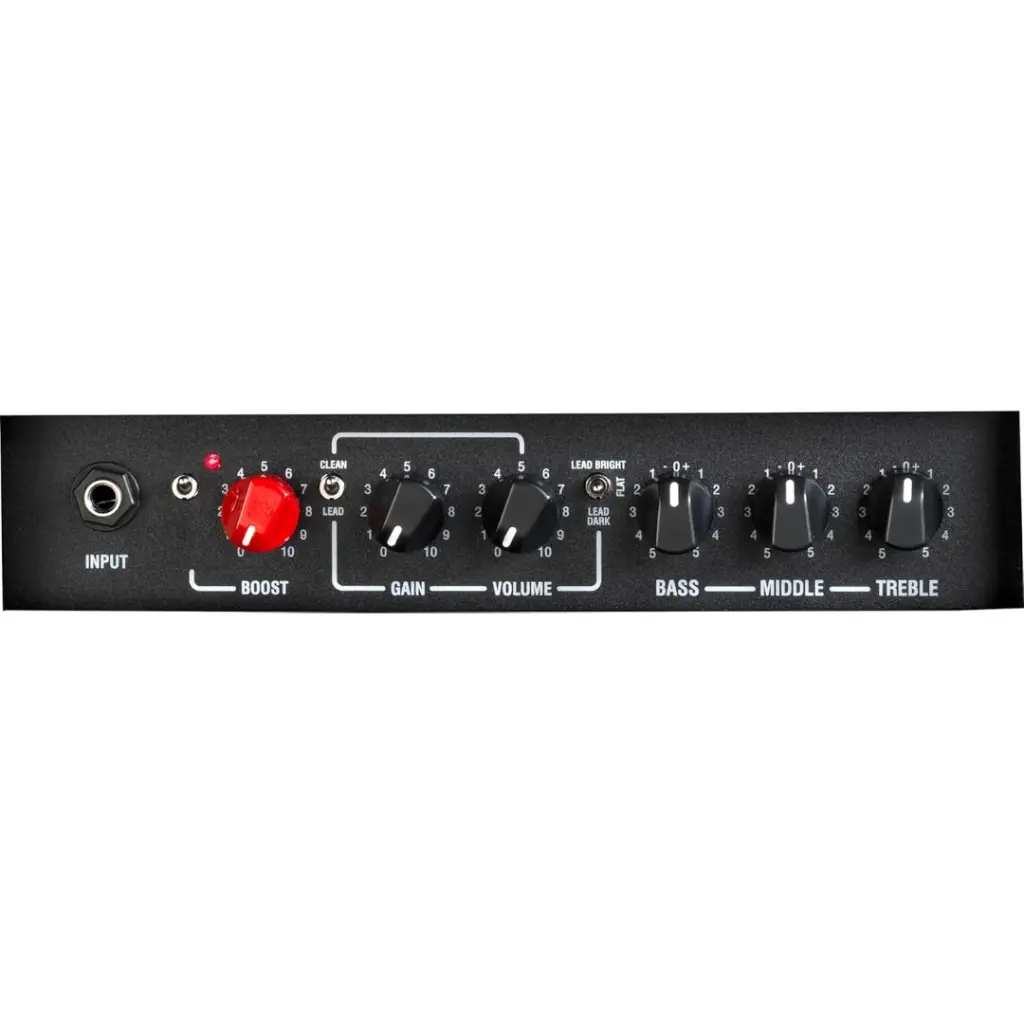

| Controls: Gain, Volume, Bass, Middle, Treble, Pre-Boost level, On/Off soft start power switch, DI out emulation on/off and ground link switches |
| Voicing Switch: 3-position switch for Bright, Natural, and Dark tonal options |
| EQ: 3-band passive tone stack (Bass, Middle, Treble). |

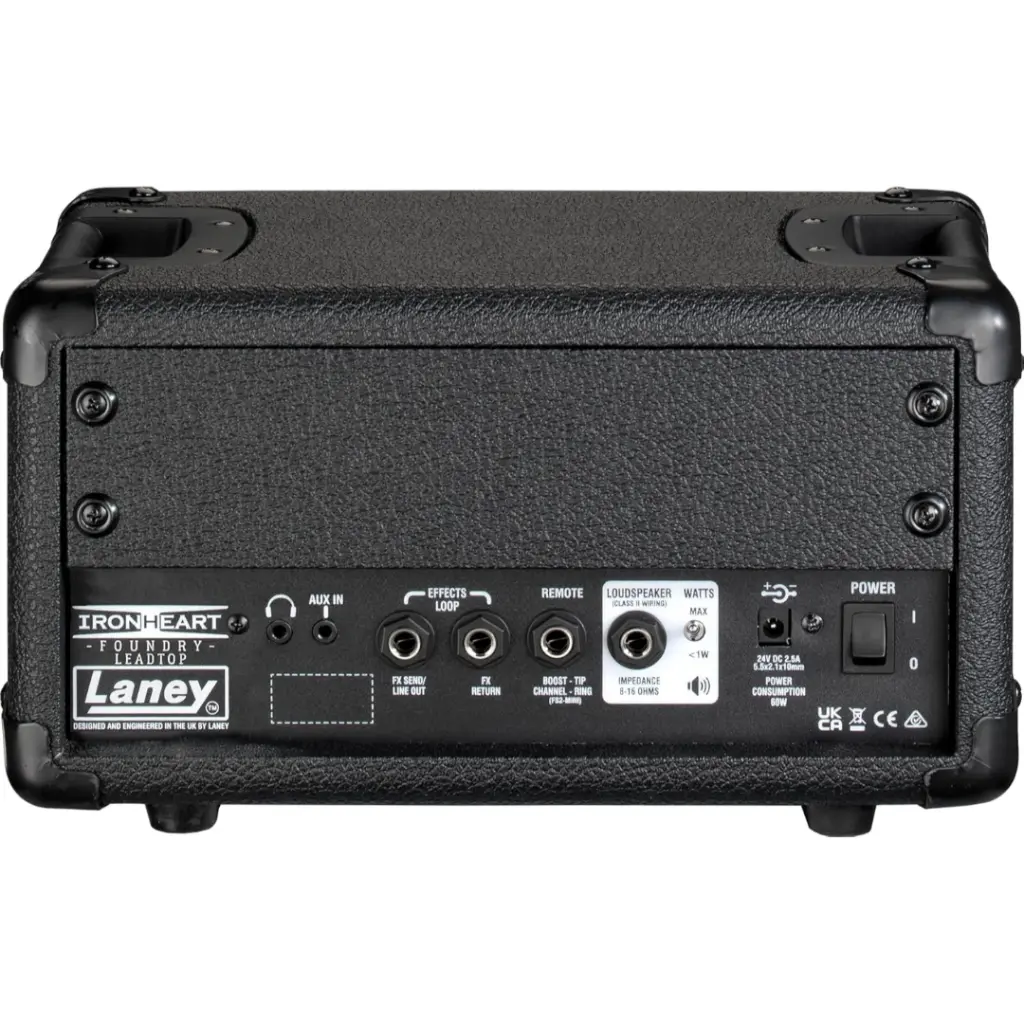

| Inputs: 6.3mm (1/4") Mono Instrument Input Jack, 3.5mm stereo AUX in jack |
| Outputs: 6.3mm (1/4") Mono Speaker Output Jack (minimum 8Ω impedance), 6.3mm FX Send (Transformer Isolated/Line Out), 6.3mm FX Return jack, Balanced Male XLR DI out, 3.5mm stereo headphone jack |
| Effects Loop: Transformer-isolated series FX Loop |
| Footswitch I/O: 6.3mm jack for external footswitch (controls pre-boost function; footswitch not included) |
| Power Supply: Regulated 24V 2.5A 60W DC PSU (included), 100-240V universal voltage |
| Dimensions: (HWD) 163 x 292 x 184mm |
| Item weight: 3.67 kg |
