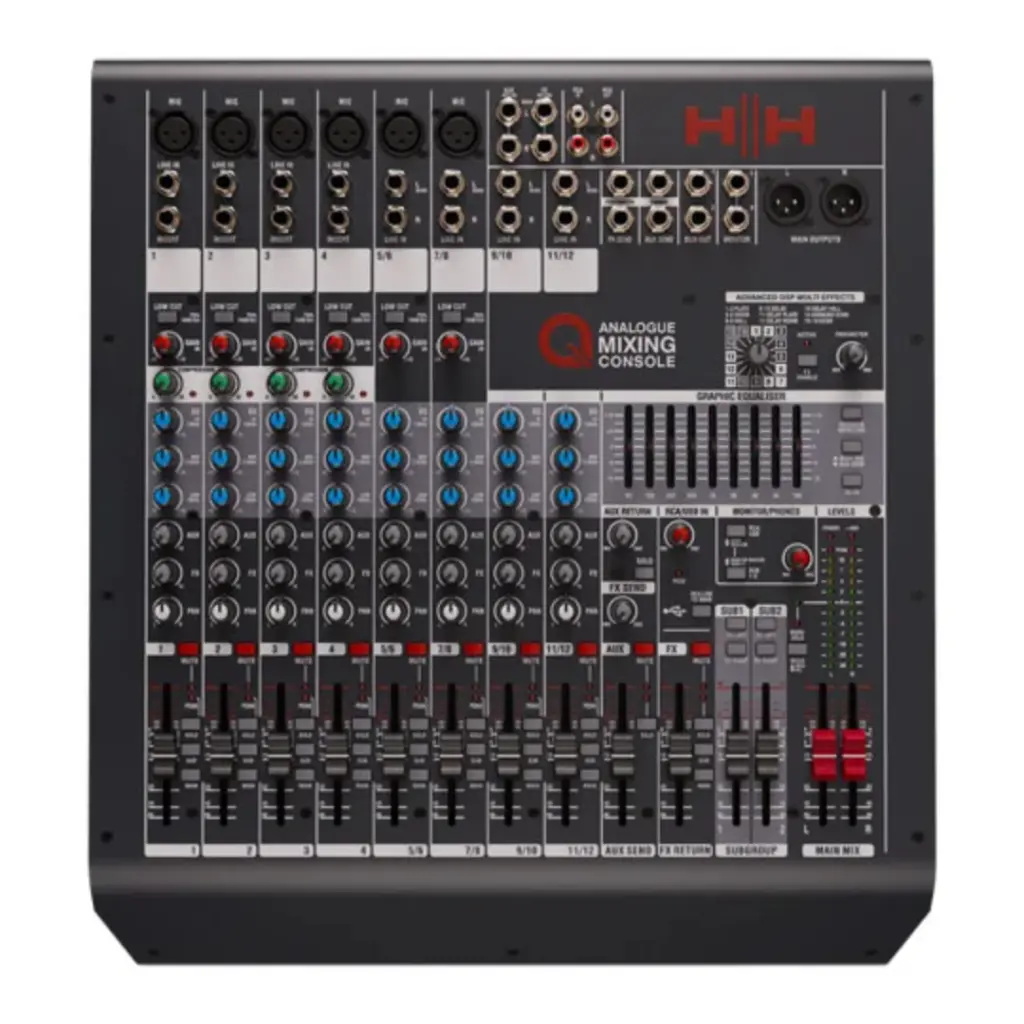

Model:
HH-HHE-Q12FX
|
|
Total Channels:
12
|
|
Mic Inputs:
6x XLR (Channels 1-8)
|
|
Mono Line Input:
4 x ¼" TRS (Channels 1-4)
|
|
Stereo Line Inputs:
4 x ¼" TRS (2 Stereo pairs, Channels 5-8 & 9-12)
|
|
EQ (Channel):
3-band (Low 100Hz, Mid 2.5kHz, High 12kHz, ±15dB)
|
|
EQ (Master):
9-band graphic EQ with feedback detection
|
|
Compressor:
Single-knob on Channels 1-4 (2:1 Ratio, 9dB Makeup Gain)
|
|
Effects:
16 high-quality DSP effects (reverbs, delays, etc.) with parameter control
|
|
USB Audio Interface:
2-in/2-out, 16-bit/24-bit, 48kHz sample rate
|
|
Main Outputs:
Balanced Stereo XLR sockets
|
|
Sub Groups:
2
|
|
Aux/FX Sends:
2 Aux sends, 1 FX send
|
|
Phantom Power:
Global +48V switch
|
|
Frequency Response:
20Hz - 20kHz (±0.3 dBu)
|
|
Dimensions (HWD):
107 x 401.5 x 443mm (4.2" x 15.8" x 17.4")
|
|
Weight:
~5.9kg (13 lbs)
|
