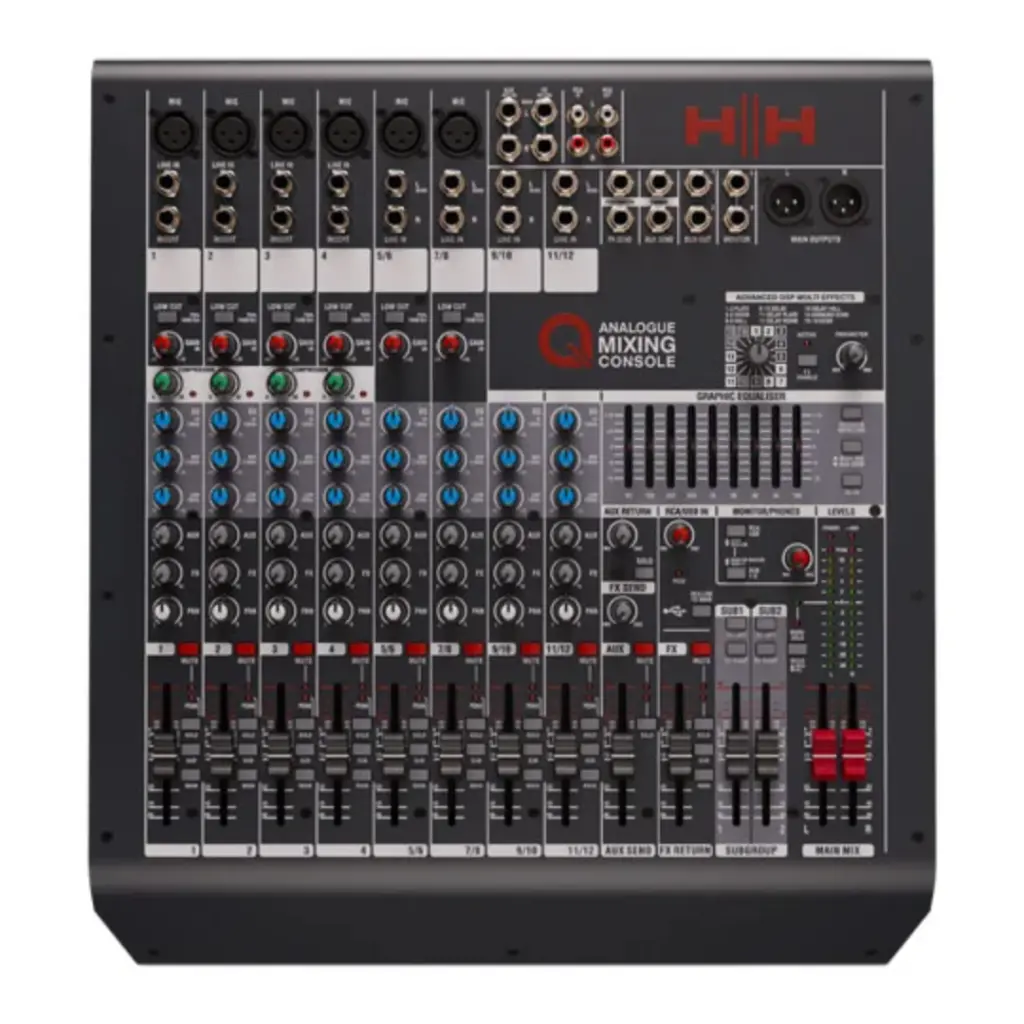

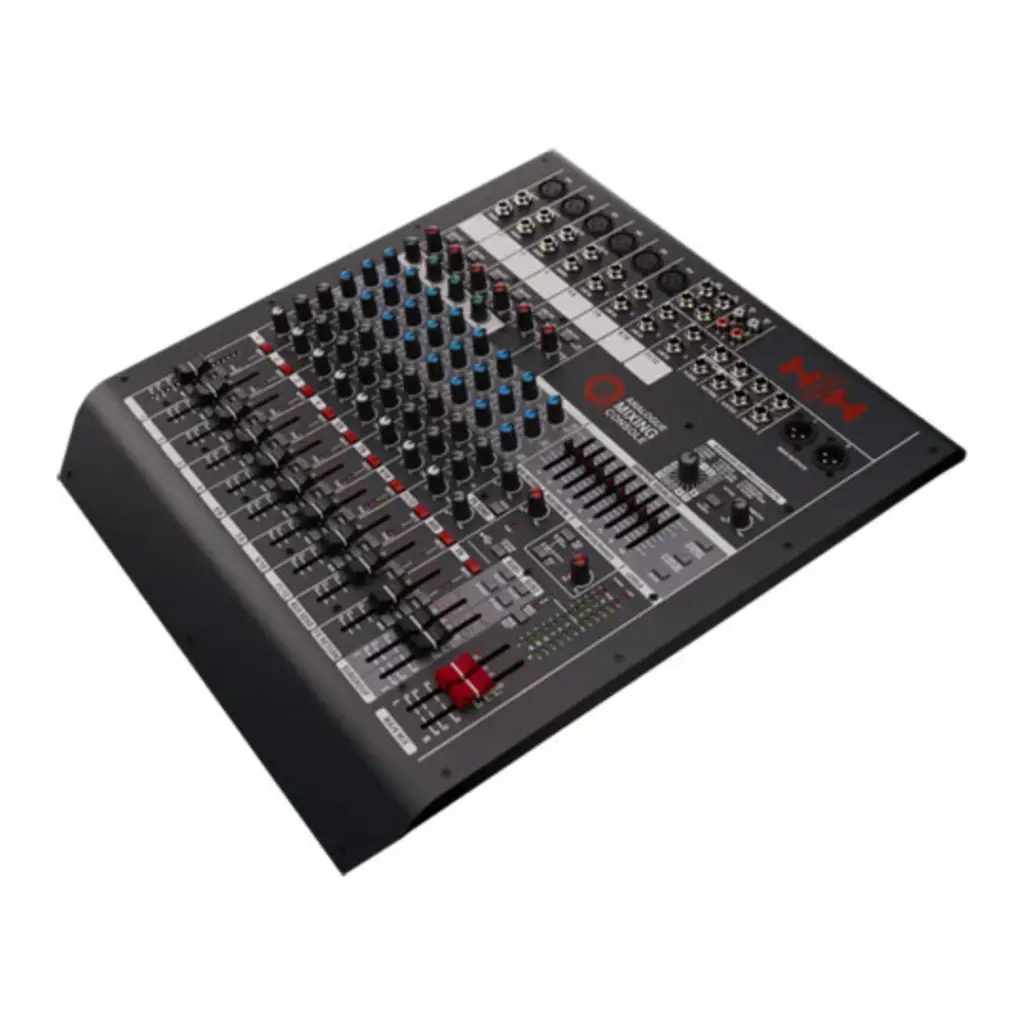

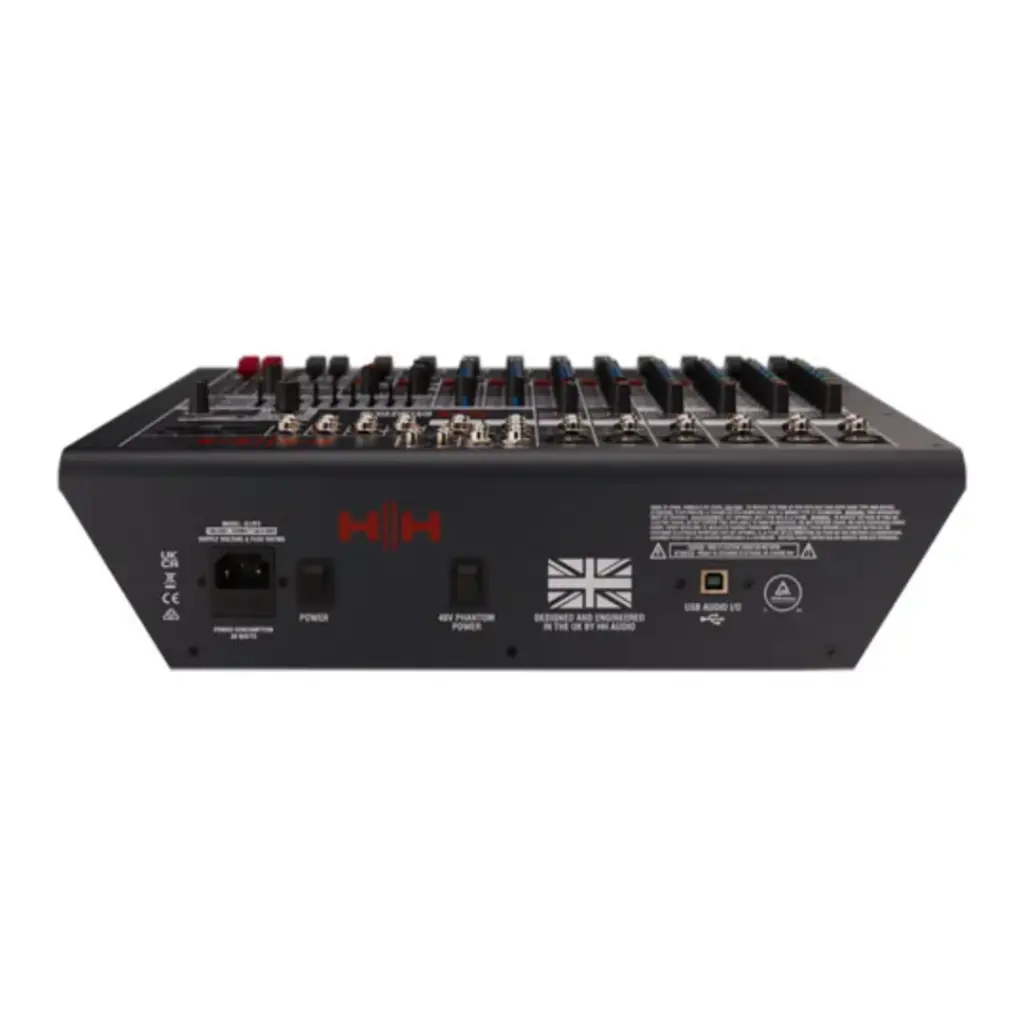

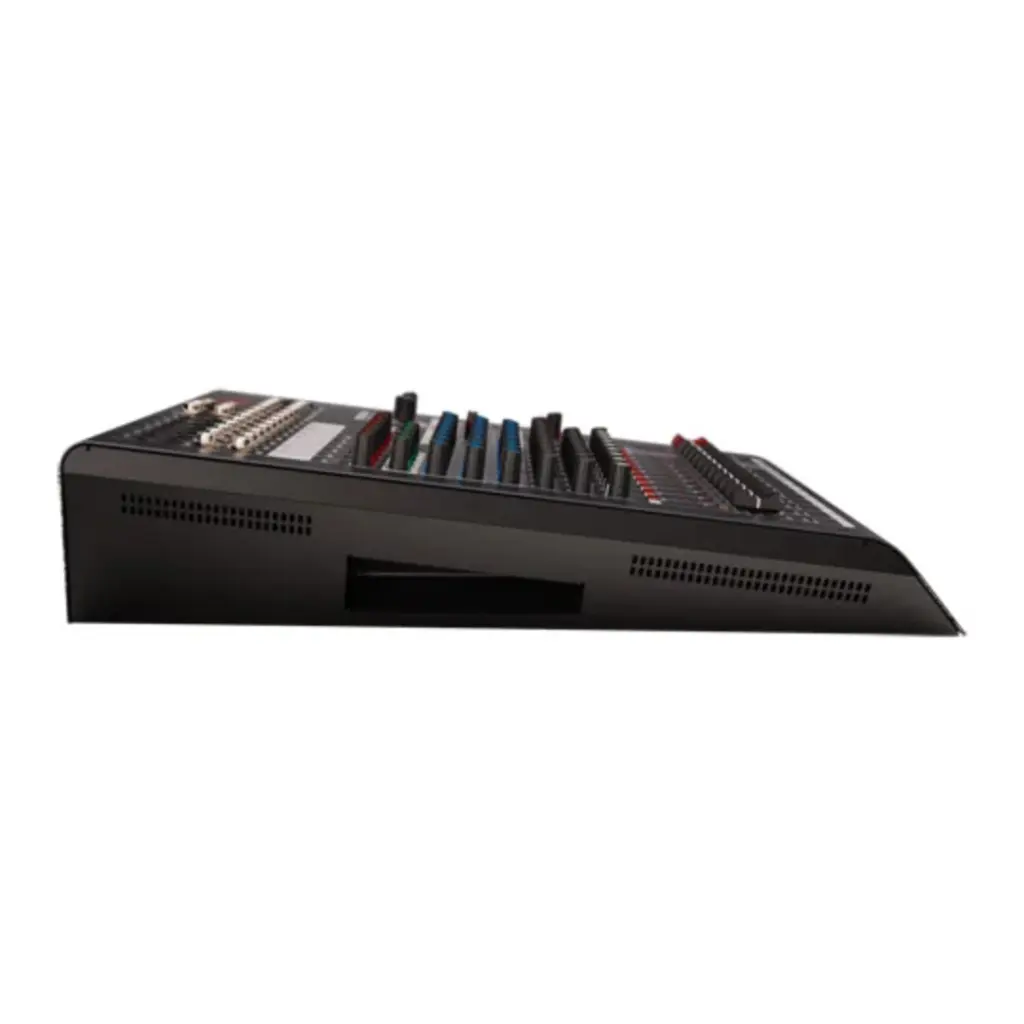

HH Electronics Q12FX HH QUEENSBERRY SERIES - Q12FX- ANALOGUE MIXING CONSOLE - 12 CHANNELS - 2 SUB GROUPS - DSP - USB
The HH Q12FX is a 12-channel analogue mixer with comprehensive features including a 9-band graphic EQ and 16 DSP effects.
| Model: HH-HHE-Q12FX |
| Total Channels: 12 |
| Mic Inputs: 6x XLR (Channels 1-8) |
| Mono Line Input: 4 x ¼" TRS (Channels 1-4) |
| Stereo Line Inputs: 4 x ¼" TRS (2 Stereo pairs, Channels 5-8 & 9-12) |
| EQ (Channel): 3-band (Low 100Hz, Mid 2.5kHz, High 12kHz, ±15dB) |
| EQ (Master): 9-band graphic EQ with feedback detection |
| Compressor: Single-knob on Channels 1-4 (2:1 Ratio, 9dB Makeup Gain) |
| Effects: 16 high-quality DSP effects (reverbs, delays, etc.) with parameter control |
| USB Audio Interface: 2-in/2-out, 16-bit/24-bit, 48kHz sample rate |
| Main Outputs: Balanced Stereo XLR sockets |
| Sub Groups: 2 |
| Aux/FX Sends: 2 Aux sends, 1 FX send |
| Phantom Power: Global +48V switch |
| Frequency Response: 20Hz - 20kHz (±0.3 dBu) |
| Dimensions (HWD): 107 x 401.5 x 443mm (4.2" x 15.8" x 17.4") |
| Weight: ~5.9kg (13 lbs) |
