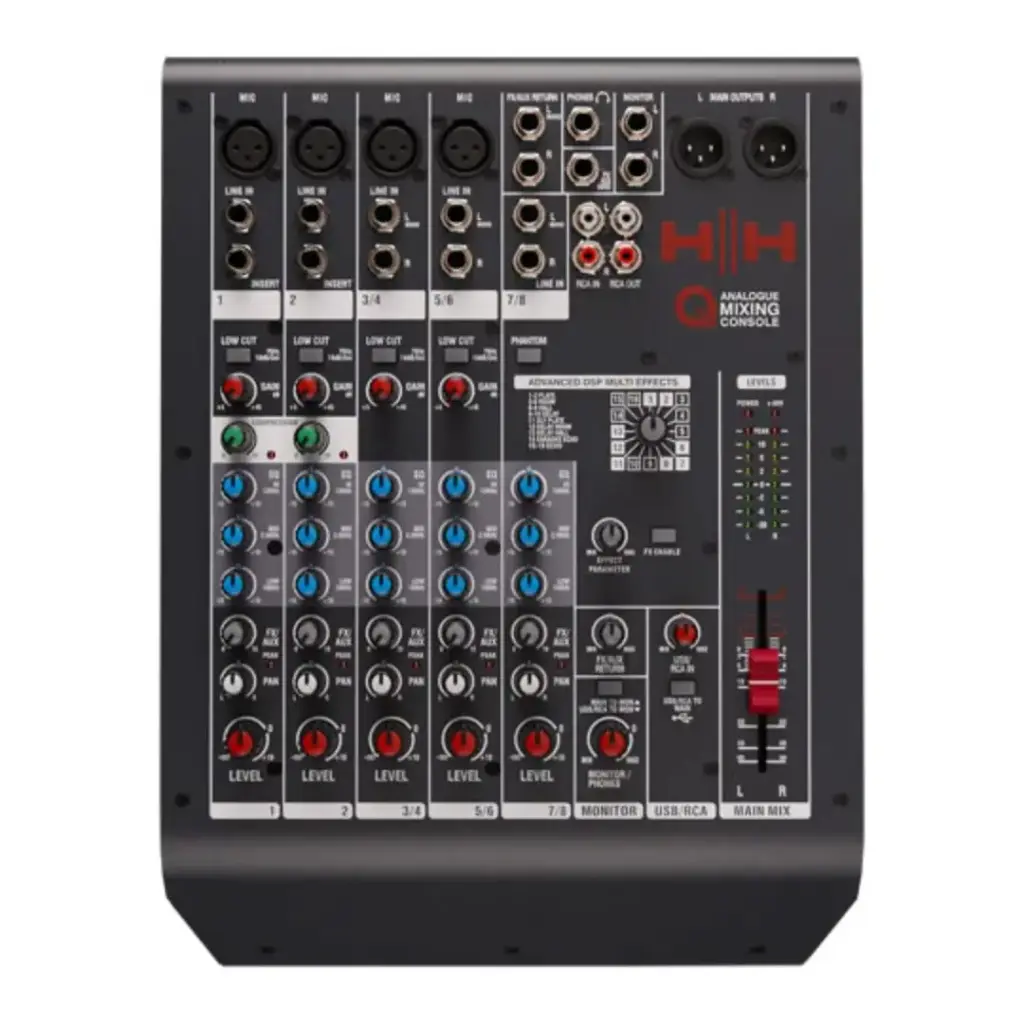

HH Electronics Q8FX HH QUEENSBERRY SERIES - Q8FX- ANALOGUE MIXING CONSOLE - 8 CHANNELS - DSP - USB
The HH Q8FX is an 8-channel analogue mixing console designed and engineered in the UK. The Q8FX features 4 microphone inputs that utilise low-noise microphone preamps as well as a line input option and mono insert on channels 1 and 2. The Q8FX also features 3 stereo line input channels perfect for electric pianos, synthesizers, drum machines, stereo audio from an external media player, or any other line-level sources.
| Model: HH-HHE-Q8FX |
| Channels: 8 Total |
| Mic Inputs: 4 x XLR (CH1-6) |
| Mono Line Input: 2 x ¼" TRS (CH1-2) |
| Stereo Line Inputs: 3 (2 x stereo ¼" TRS CH3-6; 1 x stereo ¼" TRS CH7-8) |
| EQ: 3-band per channel (Low: 100Hz, Mid: 2.5kHz, High: 12kHz, all ±15dB) |
| Low Cut Filter: 75Hz cut off @ 18dB/Octave (CH1-6) |
| Compressor: Single-knob, 2:1 Ratio on Channels 1-2 |
| Phantom Power: Global Switch (+48V) |
| Effects: 16 program DSP with parameter adjustment |
| Main Outputs: Stereo balanced XLR sockets |
| USB Audio Interface: 2-in, 2-out, 16-bit/24-bit, 48kHz Sample Rate |
| Frequency Response: 20Hz-20kHz (+/-0.3 dBu) |
| Dimensions: 96 x 261.5 x 351mm (3.8" x 10.3" x 13.8") |
| Weight: 3.3 kg (7.3 lbs) |
