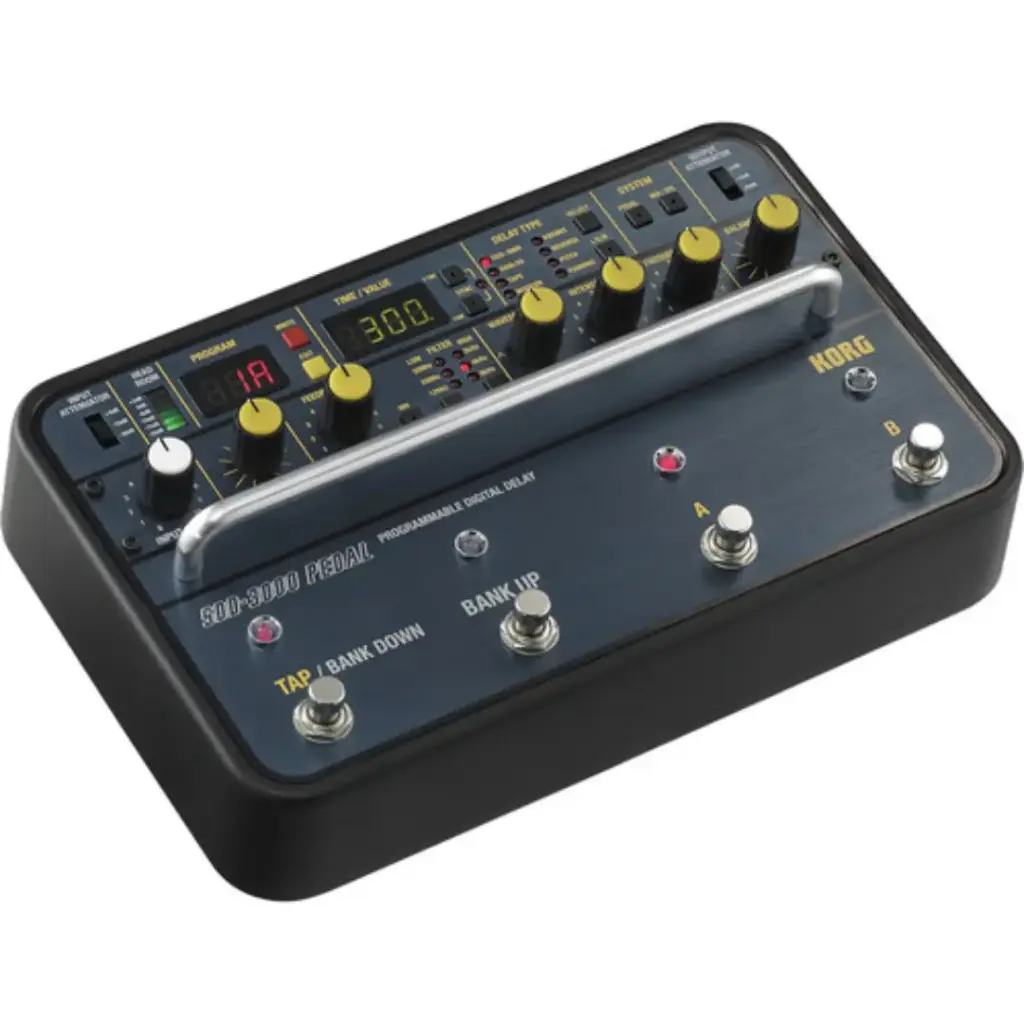

KORG SDD-3000-PDL DELAY PEDAL

The SDD-3000 PEDAL packs all of the SDD-3000's functionality into a convenient pedal unit. Featuring a preamp with ample headroom, a filter circuit that modifies the feedback sound, and modulation waveforms that allow a diverse array of delay effects, it covers all of the SDD-3000's important elements.

In addition to specifications that will satisfy SDD-3000 users, it provides many new functions such as eight delay types, long delay times up to 4,000 milliseconds, selectable modulation waveforms, stereo input/output, and MIDI compatibility. The user interface has also been updated for improved ease of use.

KORG
1,599.00 AED 1,599.00 AED

  • Model
  • Color
  • Effect Type
  • Input Level
  • Maximum Level (Input)
  • Output Level
  • Maximum Level (Output)
  • Frequency Response
  • Dynamic Range
  • Filter
  • Modulation
  • Delay
  • Batteries
  • Power Supply
  • Product Dimensions
  • Item weight
Add to cart
Model: HH-KR-SDD-3000-PDL
Color: Black
Effect Type: SDD-3000, ANALOG, TAPE, MODERN, KOSMIC, REVERSE, PITCH, PANNING
Input Level: -30, -10, +4 dBm; (0 dBm = 775 mV)
Maximum Level (Input): -13, +7, +21 dBm; (VR at 5); (0 dBm = 775 mV)
Output Level: -20, -10, +7 dBm; (0 dBm = 775 mV)
Maximum Level (Output): -3, +7, +21 dBm; (0 dBm = 775 mV)
Frequency Response: 10 Hz ～ 20 kHz: +0.5, -1 dB (Direct) 10 Hz ～ 17 kHz: +0.5, -3 dB (Effect: This frequency response is only when DELAY TYPE is set to SDD-3000)
Dynamic Range: 110 dB (direct) A-Weighted 94 dB (effect) A-Weighted
Filter: Low CUT: Turn over freq: 125, 250, 500 Hz Roll off: -3 dB/OCT @ 125 Hz, -3 dB/OCT @ 250 Hz, -3 dB/OCT @ 500 Hz High CUT: Turn over freq: 8, 4, 2 kHz Roll off: -6 dB/OCT @ 8 kHz, -6 dB/OCT @ 4 kHz, -6 dB/OCT @ 2 kHz
Modulation: Frequency Range: 0.0 (stop), 0.01 ~ 15 Hz Waveform (SINE, TRIANGLE, SQUARE, RANDOM, ENVELOPE) Intensity Delay Type: KOSMIC, PITCH : -12 ~ 0 ~ +12, Others: 0.0 ~ 10.0
Delay: 1 ~ 4,000 milliseconds 1 millisecond step (With full bandwidth)
Batteries: ‎2 AA batteries required.
Power Supply: AC adapter (DC 9V)
Product Dimensions: 10.24 x 6.69 x 3.03" (260 × 170 × 77 mm)
Item weight: 1.5 kg
