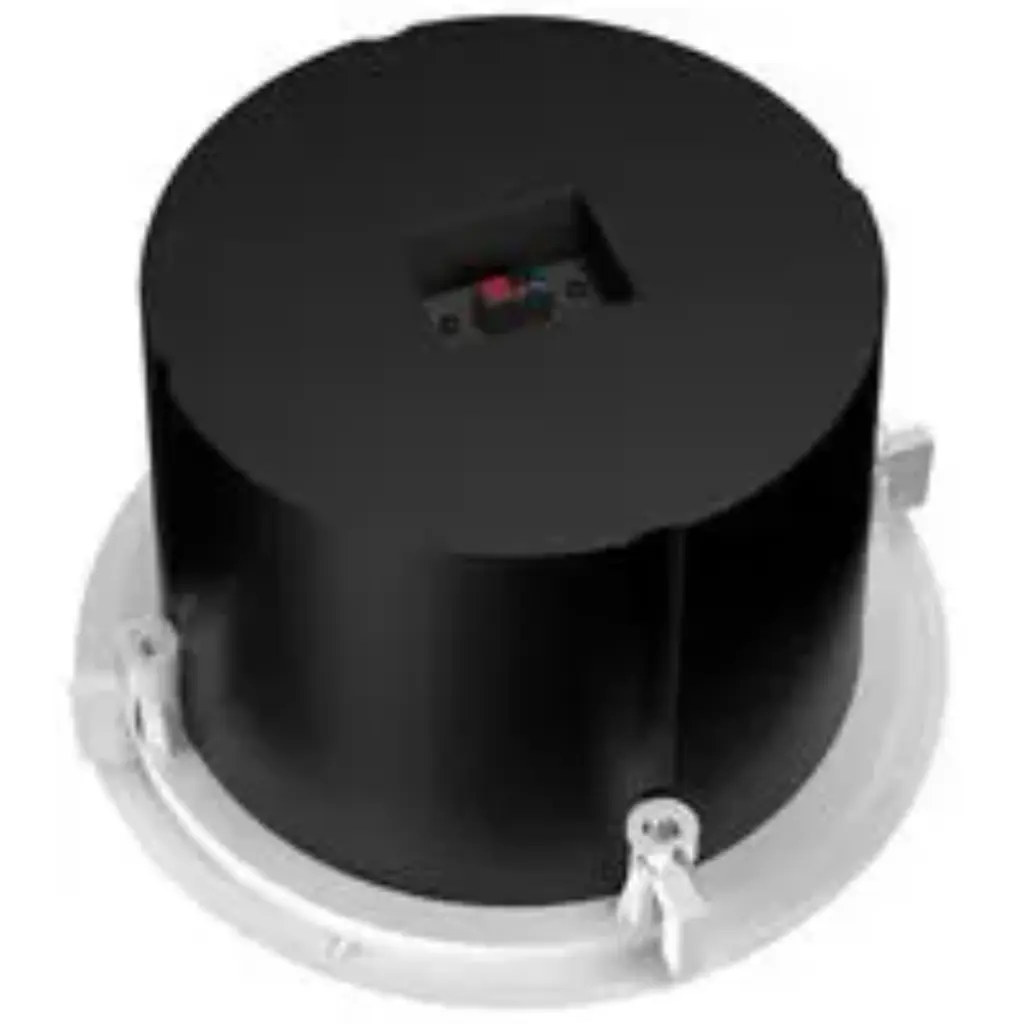

HH Electronics TNi-C8-WH HH TESSEN INSTALL - TNi-C8 - 8 inch ceiling speaker - 70/100V 3 power tappings - WHITE
The HH TNi-C8-WH is an 8-inch, 2-way coaxial ceiling installation loudspeaker from the HH Electronics Tessen Install Series. It is designed for versatile use in commercial audio applications, offering both low impedance and 70V/100V line connectivity.
| Model: HH-HHE-TNi-C8-WH |
| System Type: 2-way passive coaxial ceiling speaker |
| LF Driver: 8-inch paper cone driver |
| HF Driver: 1.5-inch neodymium driver |
| Power Handling (Low Impedance): 65W AES, 260W Peak |
| Nominal Impedance: 8 Ohms |
| 100V Power Taps: 40W, 20W, 10W |
| 70V Power Taps: 20W, 10W, 5W |
| Frequency Response (-10dB): 65Hz – 20kHz |
| Frequency Response (-3dB): 80Hz – 16kHz |
| Sensitivity (1W/1M): 91 dB SPL |
| Max SPL (Peak): 115 dB SPL |
